缺省的情況下GitLab的官方鏡像中提供了一個Redis，如果希望把此緩存數據庫放在GitLab的容器之外的話需要怎么做呢？這篇文章結合示例進行說明具體的做法。
環境準備
配置文件：GitLab
version: '2'
services:
# Version Control service: Gitlab
gitlab:
image: gitlab/gitlab-ce:12.10.5-ce.0
ports:
- "35001:80"
- "30022:22"
- "443:443"
volumes:
- ./log/:/var/log/gitlab
- ./data/:/var/opt/gitlab
- ./conf/:/etc/gitlab
restart: "no"
配置文件：Redis
[root@liumiaocn redis]# cat docker-compose.yml
version: '2'
services:
# redis master
master:
image: redis:5.0.9
container_name: redis
restart: always
command: redis-server --port 6379
ports:
- 6379:6379
volumes:
- ./data:/data
[root@liumiaocn redis]#
啟動命令
執行命令：docker-compose up -d
結果確認GitLab
[root@liumiaocn gitlab]# docker-compose ps
Name Command State Ports
---------------------------------------------------------------------------------------------------------------------
gitlab_gitlab_1 /assets/wrapper Up (healthy) 0.0.0.0:30022->22/tcp, 0.0.0.0:443->443/tcp, 0.0.0.0:35001->80/tcp
[root@liumiaocn gitlab]#
Redis
[root@liumiaocn redis]# docker-compose ps
Name Command State Ports
-----------------------------------------------------------------------
redis docker-entrypoint.sh redis ... Up 0.0.0.0:6379->6379/tcp
[root@liumiaocn redis]#
使用外部Redis服務
步驟1: 設定gitlab.rb
[root@liumiaocn redis]# docker exec -it gitlab_gitlab_1 sh
# cd /etc/gitlab
# ls
gitlab-secrets.json ssh_host_ecdsa_key ssh_host_ed25519_key ssh_host_rsa_key trusted-certs
gitlab.rb ssh_host_ecdsa_key.pub ssh_host_ed25519_key.pub ssh_host_rsa_key.pub
# cp -p gitlab.rb gitlab.rb.org
# vi gitlab.rb
#
# diff gitlab.rb gitlab.rb.org
585,586c585,586
gitlab_rails['redis_host'] = "192.168.163.151"
gitlab_rails['redis_port'] = 6379
---
> # gitlab_rails['redis_host'] = "127.0.0.1"
> # gitlab_rails['redis_port'] = 6379
1049c1049
redis['enable'] = false
---
> # redis['enable'] = true
#
步驟2: 驗證連接
[root@liumiaocn redis]# docker exec -it gitlab_gitlab_1 sh
# redis-cli -h 192.168.163.151 -p 6379
192.168.163.151:6379> ping
PONG
192.168.163.151:6379> keys *
(empty list or set)
192.168.163.151:6379>
步驟3: gitlab-ctl reconfigure
執行命令：gitlab-ctl reconfigure
或者
執行命令：docker-compose restart
執行日志示例如下所示：
# gitlab-ctl reconfigure
Starting Chef Client, version 14.14.29
resolving cookbooks for run list: ["gitlab"]
Synchronizing Cookbooks:
- package (0.1.0)
- postgresql (0.1.0)
- redis (0.1.0)
- monitoring (0.1.0)
- registry (0.1.0)
- mattermost (0.1.0)
- consul (0.1.0)
- gitaly (0.1.0)
- praefect (0.1.0)
- letsencrypt (0.1.0)
- nginx (0.1.0)
- runit (4.3.0)
- acme (4.1.1)
- crond (0.1.0)
- gitlab (0.0.1)
Installing Cookbook Gems:
Compiling Cookbooks...
Recipe: gitlab::default
...省略
Recipe: monitoring::gitlab-exporter
* runit_service[gitlab-exporter] action restart (up to date)
Running handlers:
Running handlers complete
Chef Client finished, 14/654 resources updated in 03 minutes 13 seconds
gitlab Reconfigured!
#
注：雖然提示已經完成了，后續的處理一般還需要稍等，可根據docker logs命令獲取的日志信息來以及docker ps返回的狀態信息來確認是否真正結束。
步驟4 ： 結果確認

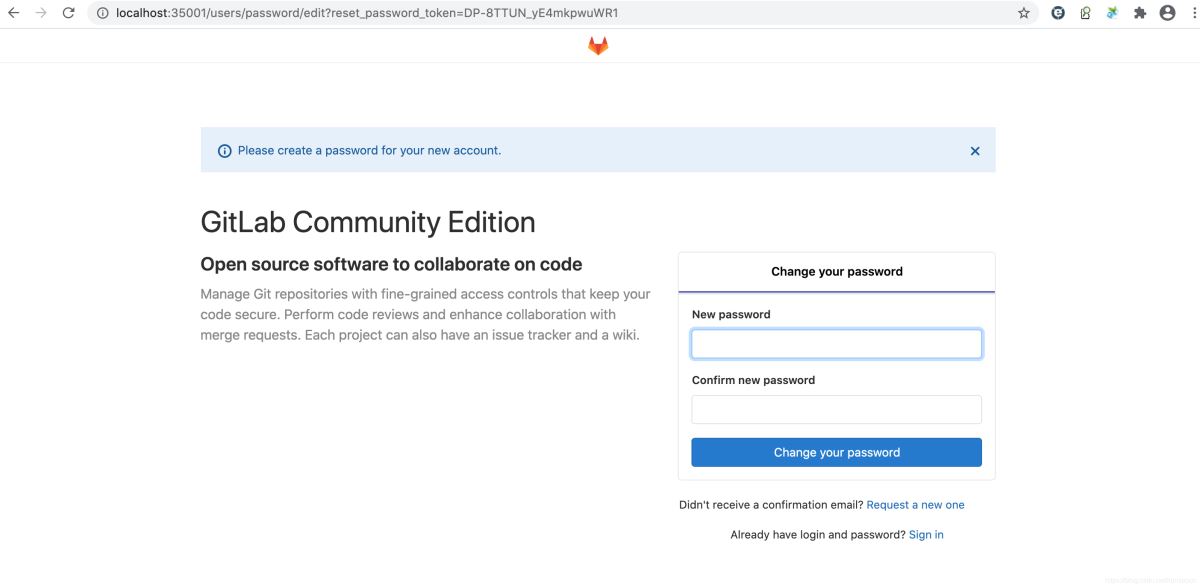

登錄之后可以正常進行root密碼的重置

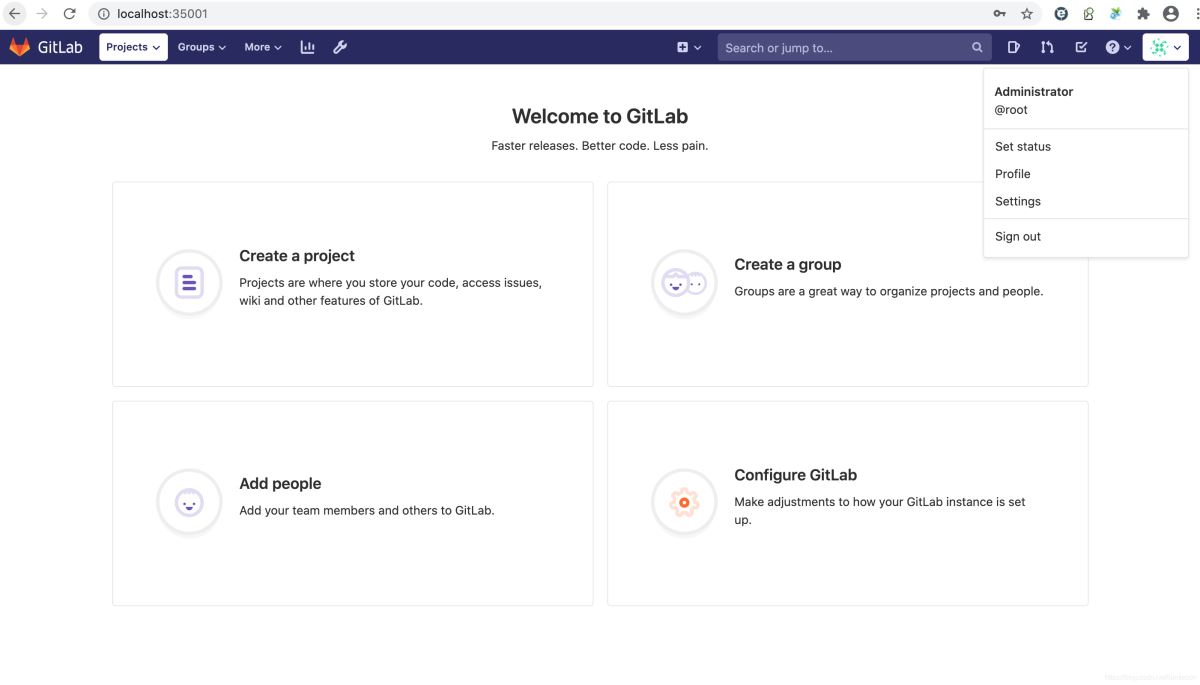

重置之后也可以使用新的密碼正常登錄
進入到GitLab容器中可以看到內置的Redis的服務已經不在運行了
[root@liumiaocn gitlab]# docker exec -it gitlab_gitlab_1 sh
# gitlab-ctl status
run: alertmanager: (pid 1629) 714s; run: log: (pid 972) 1117s
run: gitaly: (pid 1609) 718s; run: log: (pid 462) 1337s
run: gitlab-exporter: (pid 2412) 671s; run: log: (pid 893) 1152s
run: gitlab-workhorse: (pid 2405) 672s; run: log: (pid 831) 1183s
run: grafana: (pid 1644) 713s; run: log: (pid 1443) 778s
run: logrotate: (pid 864) 1167s; run: log: (pid 873) 1166s
run: nginx: (pid 846) 1178s; run: log: (pid 855) 1177s
run: postgres-exporter: (pid 1638) 713s; run: log: (pid 1008) 1103s
run: postgresql: (pid 498) 1323s; run: log: (pid 523) 1322s
run: prometheus: (pid 1584) 719s; run: log: (pid 940) 1130s
run: sidekiq: (pid 2399) 672s; run: log: (pid 811) 1194s
run: sshd: (pid 30) 1381s; run: log: (pid 29) 1381s
run: unicorn: (pid 3147) 499s; run: log: (pid 792) 1203s
#
連接外部的Redis服務即可可以看到相關的緩存數據內容了。
[root@liumiaocn gitlab]# docker exec -it redis sh
# redis-cli -h 192.168.163.151 -p 6379
192.168.163.151:6379> ping
PONG
192.168.163.151:6379> keys *
1) "resque:gitlab:cron_job:repository_check_worker"
2) "resque:gitlab:cron_job:container_expiration_policy_worker"
3) "resque:gitlab:cron_job:import_export_project_cleanup_worker"
4) "resque:gitlab:cron_job:container_expiration_policy_worker:enqueued"
5) "gitlab:exclusive_lease:user_update_tracked_fields:1"
6) "resque:gitlab:cron_job:pages_domain_verification_cron_worker"
7) "cache:gitlab:broadcast_message_current_banner_json"
...省略
94) "cache:gitlab:flipper/v1/feature/prometheus_metrics_measure_import_export_clean_up_cpu_duration"
95) "resque:gitlab:cron_job:remove_unreferenced_lfs_objects_worker:enqueued"
96) "resque:gitlab:cron_job:prune_old_events_worker:enqueued"
97) "cache:gitlab:flipper/v1/feature/soft_email_confirmation"
98) "session:gitlab:2::ad9aec16d58b972dc89d245757ab7b87b4fcb5c08b9fdcb4572be5ebe4807cba"
99) "resque:gitlab:queues"
192.168.163.151:6379>
總結
到此這篇關于GitLab: 如何使用外部提供的Redis緩存數據庫的文章就介紹到這了,更多相關gitlab使用外部Redis緩存數據庫內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
