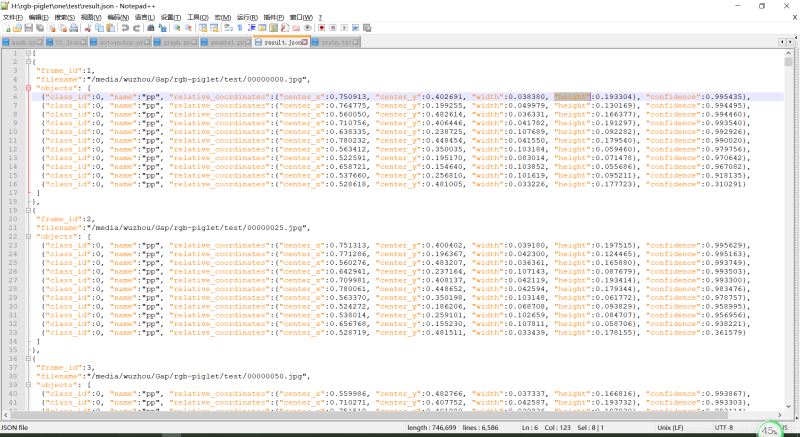

 "frame_id":1, #圖片的序號
 "filename":"/media/wuzhou/Gap/rgb-piglet/test/00000000.jpg", #圖片的路徑
 "objects": [ #該圖中所有的目標：目標類別、目標名稱、歸一化的框的坐標（xywh格式）、置信度
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.750913, "center_y":0.402691, "width":0.038380, "height":0.193304}, "confidence":0.995435},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.764775, "center_y":0.199255, "width":0.049979, "height":0.130169}, "confidence":0.994495},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.560050, "center_y":0.482614, "width":0.036331, "height":0.166377}, "confidence":0.994460},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.710756, "center_y":0.406446, "width":0.041782, "height":0.191297}, "confidence":0.993540},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.638335, "center_y":0.238725, "width":0.107689, "height":0.092282}, "confidence":0.992926},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.780232, "center_y":0.448454, "width":0.041550, "height":0.179540}, "confidence":0.990020},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.563412, "center_y":0.350035, "width":0.103184, "height":0.059460}, "confidence":0.979756},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.522591, "center_y":0.195170, "width":0.083014, "height":0.071478}, "confidence":0.970642},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.658721, "center_y":0.154640, "width":0.103852, "height":0.055686}, "confidence":0.967082},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.537660, "center_y":0.256810, "width":0.101619, "height":0.095211}, "confidence":0.918135},
  {"class_id":0, "name":"pp", "relative_coordinates":{"center_x":0.528618, "center_y":0.481005, "width":0.033226, "height":0.177723}, "confidence":0.310291}
 ]
},

import json
import time
import os
from PIL import Image
import cv2
import numpy as np

'''人為構造xml文件的格式'''
out0 ='''annotation>
    folder>%(folder)s/folder>
    filename>%(name)s/filename>
    path>%(path)s/path>
    source>
        database>None/database>
    /source>
    size>
        width>%(width)d/width>
        height>%(height)d/height>
        depth>3/depth>
    /size>
    segmented>0/segmented>
'''
out1 = '''    object>
        name>%(class)s/name>
        pose>Unspecified/pose>
        truncated>0/truncated>
        difficult>0/difficult>
        bndbox>
            xmin>%(xmin)d/xmin>
            ymin>%(ymin)d/ymin>
            xmax>%(xmax)d/xmax>
            ymax>%(ymax)d/ymax>
        /bndbox>
    /object>
'''

out2 = '''/annotation>
'''

def read_json(json_dir):
    with open(json_dir,"r") as f:
        data = json.load(f)
        print(type(data),len(data),type(data[0]),data[0]['frame_id'])
    return data


'''txt轉xml函數'''
def translate(fdir,lists):
    source = {}
    label = {}
    data = read_json(fdir+"/result.json")
    k = 0
    for jpg in lists:
        print(jpg)
        if jpg[-4:] == '.jpg':
            image= cv2.imread(jpg)#路徑不能有中文
            h,w,_ = image.shape #圖片大小

            fxml = jpg.replace('.jpg','.xml')
            fxml = open(fxml, 'w');
            imgfile = jpg.split('/')[-1]
            source['name'] = imgfile
            source['path'] = jpg
            source['folder'] = os.path.basename(fdir)

            source['width'] = w
            source['height'] = h

            fxml.write(out0 % source)

            for obj in data[k]["objects"]:
                label['class'] = obj["class_id"]
                box = obj["relative_coordinates"]

                '''把txt上的數字（歸一化）轉成xml上框的坐標'''
                xmin = float(box["center_x"] - 0.5*box["width"])*w
                ymin = float(box["center_y"] - 0.5*box["height"])*h
                xmax = float(xmin + box["width"]*w)
                ymax = float(ymin + box["height"]*h)

                label['xmin'] = xmin
                label['ymin'] = ymin
                label['xmax'] = xmax
                label['ymax'] = ymax

                fxml.write(out1 % label)

            k = k+1
            fxml.write(out2)

if __name__ == '__main__':
    file_dir = "H:/rgb-piglet/five/test"
    lists=[]
    for i in os.listdir(file_dir):
        if i[-3:]=='jpg':
            lists.append(file_dir+'/'+i)
    #print(lists)
    translate(file_dir,lists)
    print('---------------Done!!!--------------')
